Working With Slicers in Excel


For dedicated, instructor driven Microsoft Excel courses in Chicago and Los Angeles call us on 888.815.0604..



In this article, we will learn how to:

  • Insert and use a slicer
  • Rename a slicer
  • Change slicer settings


Inserting and Using a Slicer

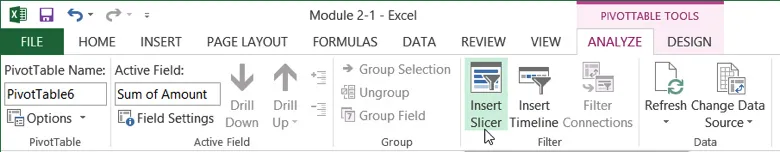

Slicers allow you to quickly filter any data that is displayed within a PivotTable. To insert a slicer, first click anywhere inside the PivotTable that you are working with. Next, click PivotTable Tools – Analyze → Insert Slicer:



insert slicer function

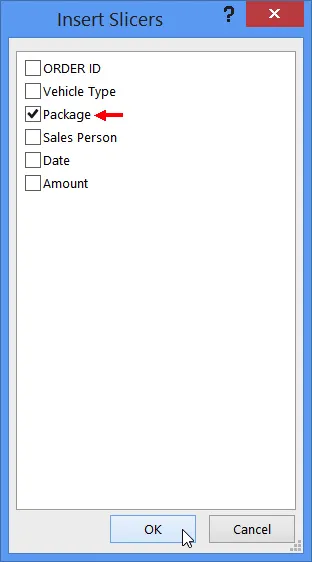

The Insert Slicers dialog will now be open. You may use the controls in this dialog to choose what criteria you would like to sort the data by. For this example ensure that a checkmark appears beside Package. Click OK:



slicer dialog displayed

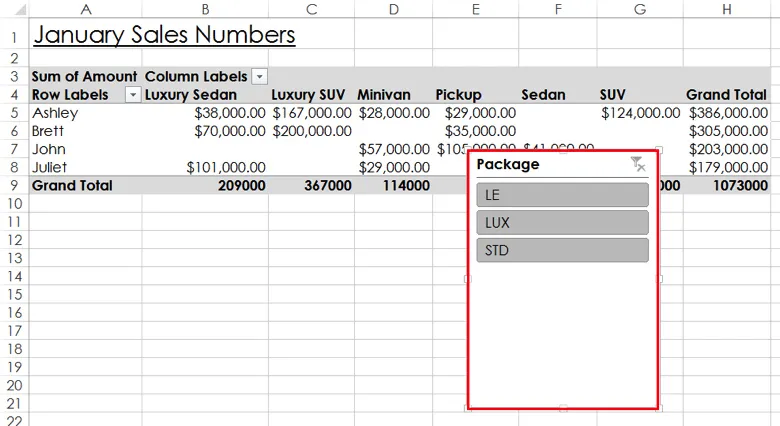

Now the slicer pop-up will be displayed:



slicer pop up displayed

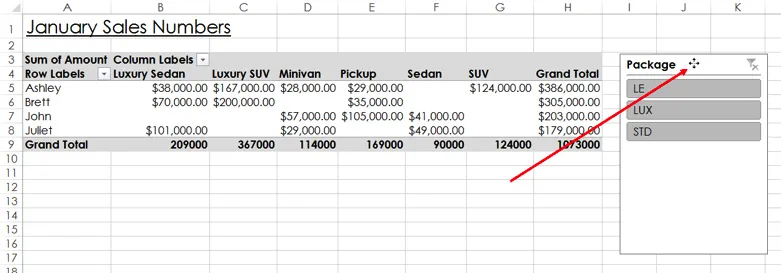

Move this slicer so that is doesn’t obstruct the PivotTable by clicking and dragging it by its header to a new and unobtrusive location:



slicer in unobtrusive location

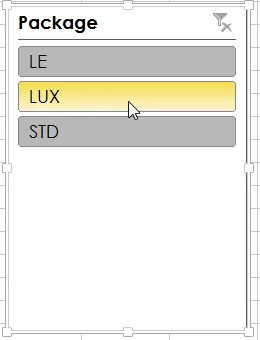

Next, you need to use the slicer to sort the data in the PivotTable by criteria from the selected category. For this example, click LUX:



pivot table sort

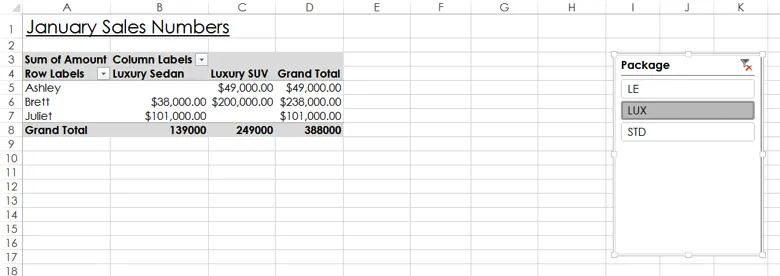

Now only vehicles that were sold with the LUX package will be accounted for in the PivotTable:



pivot table lux displayed



Renaming the Slicer

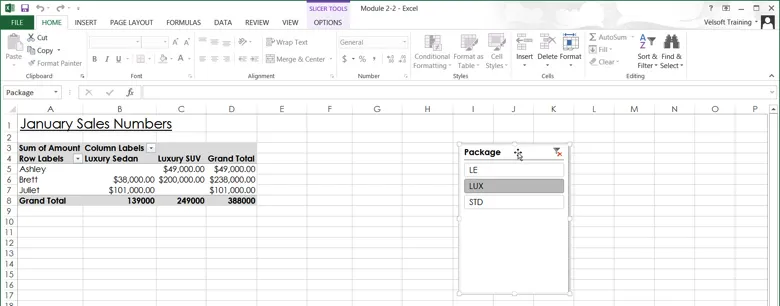

By default, any slicer that you insert into your worksheet will be named after the field that you chose for it to work with. To change this name, first click on the slicer to select it:



click slicer to amend name



By selecting it, you will make the Slicer Tools – Options tab available on the ribbon. Click to open this tab and you will see that the Slicer group contains a text box:



slicer options



Replace the text in this text box with the new name you want for the slicer. For this example, type “Module 2:”



rename text



The new name will immediately be applied to the currently selected slicer:



new name displayed



Changing Slicer Settings

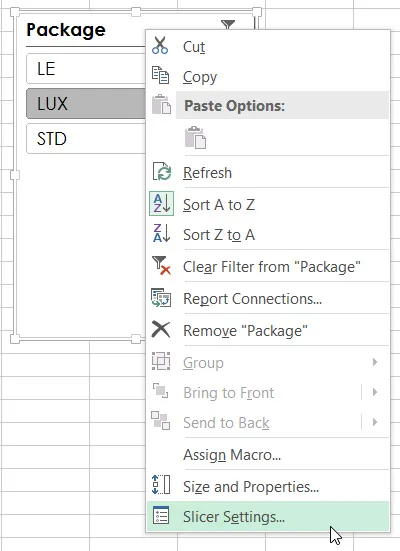

To access a variety of different settings you can use to customize your slicer, right-click on the slicer and then click Slicer Settings:



access settings

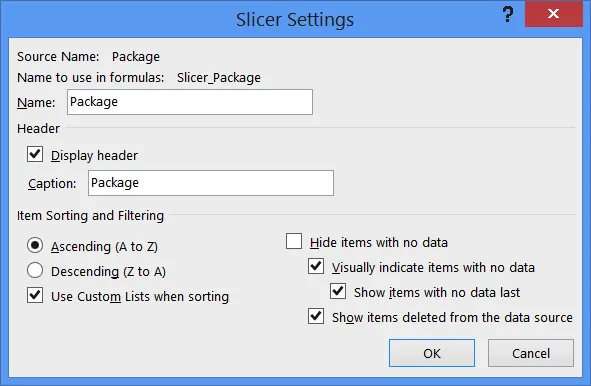

The Slicer Settings dialog will now be shown:



slicer settings shown

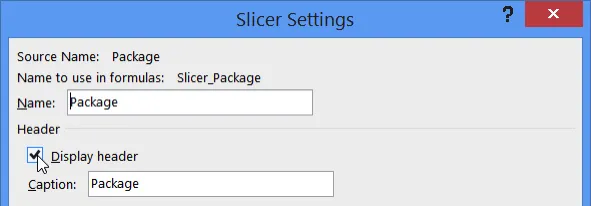

Using the controls in this dialog you can rename the slicer, change its caption, change sortation options, as well as choose how to handle items with no data. For this example, hide the header for this slicer by deselecting the “Display header” check box:



sortable options

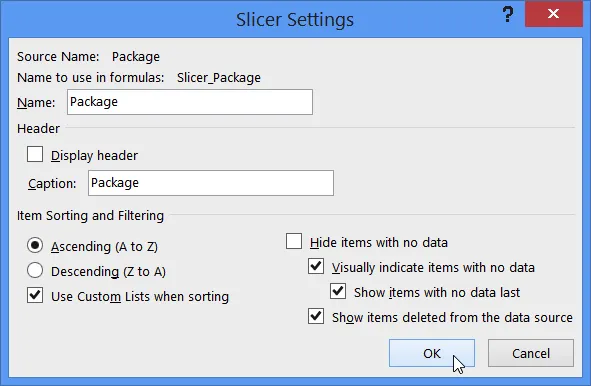

Click OK to apply your changes:



apply changes

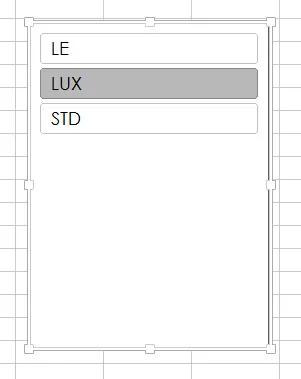

The header for the selected slicer will now be hidden:



header change
